Bottleneck Calculator

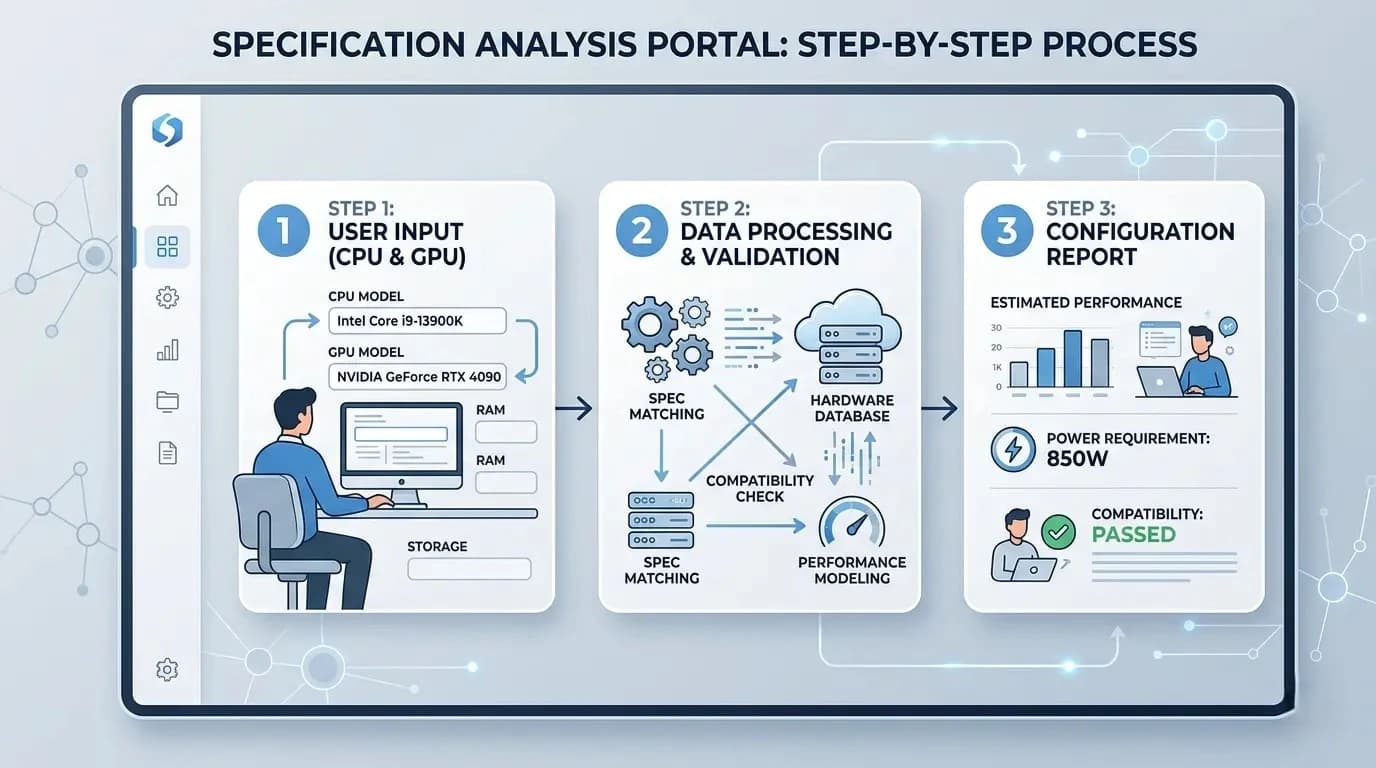

How to Use a Bottleneck Calculator

Using a bottleneck calculator helps you determine which component in your system limits performance. Follow these steps to get accurate results and actionable insights.

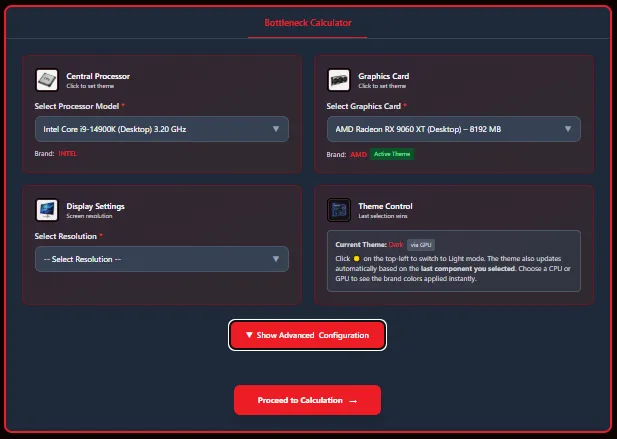

Step 1: Select Your CPU

Enter your processor details including model, core count, clock speed, and cache. The calculator uses component-level scoring and advanced calculations to estimate CPU vs GPU bottleneck ratios and potential performance limitations.

Step 2: Select Your GPU

Input your graphics card model and specifications. The calculator compares GPU power against your CPU, taking into account VRAM, frame pacing, architecture generation, and real-world FPS benchmarks to predict bottlenecks.

Step 3: Choose Resolution and Settings

Select the display resolution and game or application settings. Higher resolutions shift bottlenecks toward the GPU, while lower resolutions often highlight CPU limitations.

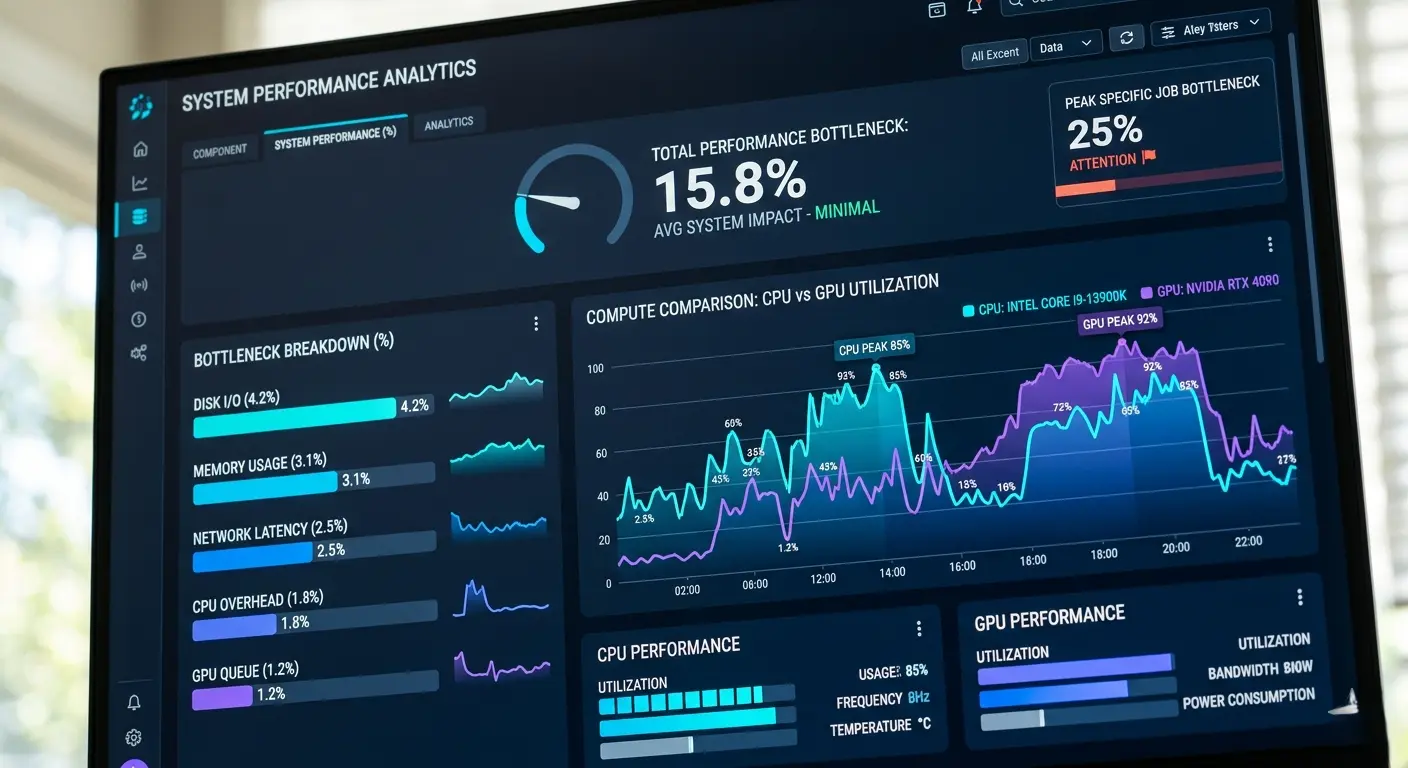

Step 4: Review the Results

The calculator provides a detailed report including bottleneck ratios, component utilization, and performance analysis. Review real-world FPS projections and frame pacing insights to understand how your system performs under different loads.

Step 5: Compare With Manual System Analysis

For more precise insights, cross-reference calculator results with manual system analysis using benchmarking tools. Compare CPU vs GPU usage, frame times, and performance balance to validate the calculator's predictions.

Tips for Accurate Results

Keep drivers up-to-date and ensure thermal throttling is not occurring during measurement. Use up-to-date system models and check that component data is accurate. A user-friendly interface helps you input information correctly, ensuring reliable bottleneck detection and optimization recommendations.

How to Interpret Bottleneck Results Correctly

A bottleneck calculator provides an estimate of how much one component is limiting another in your system. Understanding the results helps you make informed decisions about upgrades, performance optimization, and system balance.

Results Under 10%

A result under 10%: This indicates an excellent balance. Your frame rate, gaming performance, and component utilization should be smooth.

Results Between 10% and 20%

A result between 10% and 20%: This is a moderate bottleneck and completely acceptable for most users. One component may leave some performance unused, but you are unlikely to notice severe limitations in most games or applications. Casual gaming, standard content creation, or everyday tasks will generally not be affected. If you are aiming for competitive frame rates or maximum performance, note this for future upgrades.

Results of 30% or Higher

A result of 30% or higher: This signals a significant mismatch. One component is strongly limiting the other, and you may notice frame drops, stutters, or reduced performance in demanding applications. In this range, considering an upgrade or adjusting settings can provide a noticeable improvement in FPS, component utilization balance, and overall system performance.

When You Can Safely Ignore a Bottleneck

If your frame rate targets are low, you are using resolution scaling, or your PC is mainly for non-gaming tasks, even results around 25% may not affect day-to-day use enough to justify upgrading.

When You Should Upgrade

Consider upgrading if consistent frame rate, performance balance, or system utilization matters to you. For new builds, choose components that complement each other. If one component consistently reaches 99% usage while the other is below 60%, this is a clear sign that your system is bottlenecked and action is needed.

Practical Tips for Interpreting Results

Check the bottleneck percentage for each component to understand which is limiting performance. Use component utilization data to identify hardware imbalances. Download reports or keep a comparison table to track upgrades over time. Analyze performance insights to optimize settings, drivers, and background processes. By reviewing bottleneck ratios, performance issues, and utilization patterns, you can make smarter decisions about upgrades, system optimization, and achieving a balanced build.

Core Features of Our Bottleneck Calculator

Our trusted PC Bottleneck Calculator analyzes your complete system configuration to identify performance limitations and provide actionable upgrade recommendations.

Accuracy and Limitations of Bottleneck Calculators

Bottleneck calculators are useful tools to estimate how your CPU, GPU, and RAM interact and identify potential performance limitations. While they provide valuable guidance, understanding their accuracy and limitations is essential to interpret results correctly and avoid overestimating their precision.

How Calculators Estimate Performance

Most calculators rely on advanced algorithms, database updates, and component-specific scoring to predict bottlenecks. They analyze factors like CPU and GPU compatibility, estimated data from benchmarks, and typical hardware configurations to generate results. These calculations are useful for identifying trends but may not reflect every real-world scenario.

Limitations to Keep in Mind

Bottleneck calculators have inherent limitations. They cannot account for every variable, including driver versions, thermal constraints, background processes, or software-specific performance variations. Hardware mismatches, such as outdated components paired with new models, may produce results that differ from real-world testing. Additionally, calculators rely on up-to-date models, and outdated databases can affect accuracy.

When to Use and When to Double-Check

Calculators are best for quick analysis, identifying potential performance limitations, and planning upgrades. However, it’s recommended to verify results with real-world testing when possible, especially for critical systems or competitive gaming setups. Using a combination of calculator results and practical benchmarks ensures better understanding of your system’s true performance.

Upgrade Guidance and Recommendations

Calculators can suggest potential upgrades when a bottleneck is detected, but always consider the broader context. Check component-specific scoring, system balance, and thermal constraints before purchasing new hardware. Driver updates, proper cooling, and optimized configurations can sometimes reduce bottlenecks without changing components.

CPU vs GPU Bottleneck (With Real Examples)

Numbers alone do not tell the full story. Here are three real build scenarios that illustrate exactly how bottlenecks behave in practice.

Example 1: RTX 4070 + Ryzen 5 5600 at 1080p

At 1080p, games push the CPU hard because resolution is lower and the processor must generate more frames per second to keep the GPU fed. A Ryzen 5 5600 paired with an RTX 4070 at 1080p creates a moderate CPU limitation.

Example 2: Same Build at 1440p

Push the same RTX 4070 and Ryzen 5 5600 to 1440p and the picture changes significantly. Higher resolution shifts the workload dramatically toward the GPU. Now the Ryzen 5 sits comfortably at 55 to 65 percent utilization while the RTX 4070 climbs to 85 to 95 percent. The bottleneck has shifted from the CPU to the GPU, and upgrading the processor would do almost nothing for your frame rate.

This is exactly why resolution matters so much when you check for bottleneck.

Example 3: High-End CPU Plus Weak GPU

Take an Intel Core i9-13900K and pair it with an RTX 3050. That processor is an absolute powerhouse, but the RTX 3050 simply cannot render frames fast enough to use what the CPU provides. GPU utilization sits at 99 percent in nearly every title, the CPU lounges around 25 to 30 percent, and frame rates disappoint despite having one of the fastest processors ever made.

Fixing and Preventing System Bottlenecks

Bottlenecks occur when one component limits overall system performance. You can fix or prevent bottlenecks with a combination of hardware upgrades, system optimizations, and proper configuration. Following these steps ensures smooth gameplay, faster load times, and stable multitasking.

Factors Affecting Bottlenecking

Bottlenecks can result from more than just CPU or GPU power. Understanding the factors that influence performance helps you interpret bottleneck calculator results accurately and optimize your system.

CPU Architecture

CPU performance depends on core count, clock speed, cache, and memory latency. High instructions-per-clock and technologies like AMD 3D V-Cache reduce CPU-to-memory latency and improve gaming performance. These variables directly affect bottleneck ratios, as an underpowered CPU can limit even a high-end GPU.

GPU Power

GPU bottlenecks are influenced by VRAM capacity, memory bandwidth, architecture generation, and driver maturity. Frame pacing, ray tracing, and workloads with high graphical complexity can reveal GPU limitations that calculators measure. Ensuring up-to-date drivers and balanced GPU-CPU pairing helps reduce bottlenecks.

Screen Resolution

Resolution greatly affects which component is limiting performance. At 1080p, CPUs typically work harder, while at 4K, the GPU is often the bottleneck. Bottleneck calculators account for this by analyzing frame rates and workload distribution. Adjusting resolution or graphics settings can shift the bottleneck and improve overall performance.

RAM Speed and Capacity

Memory latency, speed, and capacity influence CPU performance. Insufficient RAM or slow memory can artificially create bottlenecks, causing CPU or GPU utilization to appear lower than expected. Bottleneck calculators consider memory timing and capacity to give more accurate component scores.

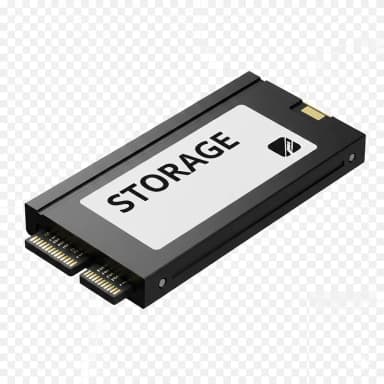

Storage Type

Storage type affects load times and perceived performance. Hard drives may cause stutters in open-world games, creating apparent CPU or GPU bottlenecks.

Cooling and Thermal Limits

Thermal throttling reduces CPU and GPU speed under sustained load, affecting bottleneck readings. Proper airflow, cooling solutions, and monitoring temperatures ensure components operate at full potential, giving accurate calculator results.

Power Supply Stability

An insufficient or aging PSU can lower performance under load. Both CPU and GPU may reduce speed automatically, creating intermittent bottlenecks. A stable power supply ensures consistent utilization, frame pacing, and reliable bottleneck measurements.

Other Influencing Factors

Motherboard limitations, outdated drivers, and system configuration can all contribute to bottlenecks. Paying attention to these factors helps interpret calculator outputs correctly and guides decisions for upgrades or optimizations.

Best Practices for PC Building and Upgrading

Following best practices when building or upgrading a PC helps minimize bottlenecks and ensures your system performs optimally. Proper component selection, balanced system design, and careful planning are key to achieving consistent performance.

Component Selection and CPU-GPU Balance

Choosing compatible CPU and GPU combinations prevents bottlenecks and maximizes frame rates. Consider core count, clock speed, and GPU power relative to your use case. Dual-channel RAM and VRM design also impact performance and stability.

Memory and Storage Optimization

Use sufficient RAM with low latency and dual-channel configurations to avoid memory bottlenecks. High-speed storage such as NVMe SSDs ensures data streams efficiently and prevents storage from creating artificial CPU or GPU limitations.

Cooling and Case Design

Proper airflow, CPU coolers, and quality thermal paste prevent thermal throttling. Ensuring the CPU and GPU maintain optimal temperatures keeps component utilization stable and bottleneck calculator results accurate.

Power and PCIe Considerations

A stable power supply with adequate wattage prevents CPU and GPU from reducing performance under load. Ensure PCIe Gen 4 or 5 support to maintain high bandwidth between components, avoiding potential bottlenecks.

Using Analysis Tools and Upgrade Planning

Hardware bottleneck analysis tools, performance analysis, and upgrade recommendations help identify weak points before they impact performance. Planning upgrades using these tools ensures your system remains balanced and optimized over time.

Optimization Tips

Regularly update drivers, maintain proper cooling, and monitor system utilization. Following best practices in component selection, case airflow, and upgrade paths ensures your system runs efficiently, with minimal bottlenecks affecting gaming, content creation, or general use.

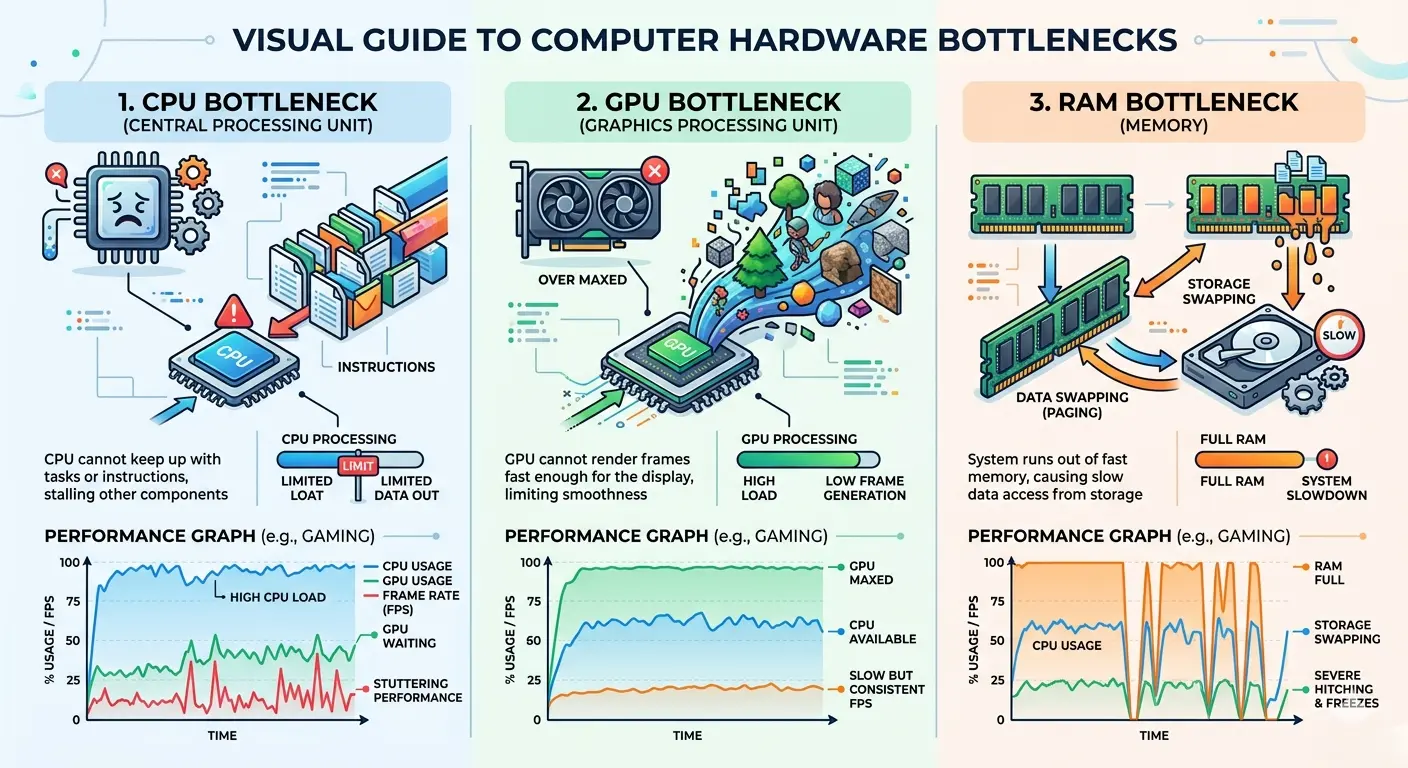

Common CPU and GPU Bottleneck Scenarios

Below are some common CPU and GPU utilization scenarios. Understanding these usage patterns can help you determine whether your system is experiencing a hardware bottleneck or if a specific game or application relies more on the CPU or the GPU.

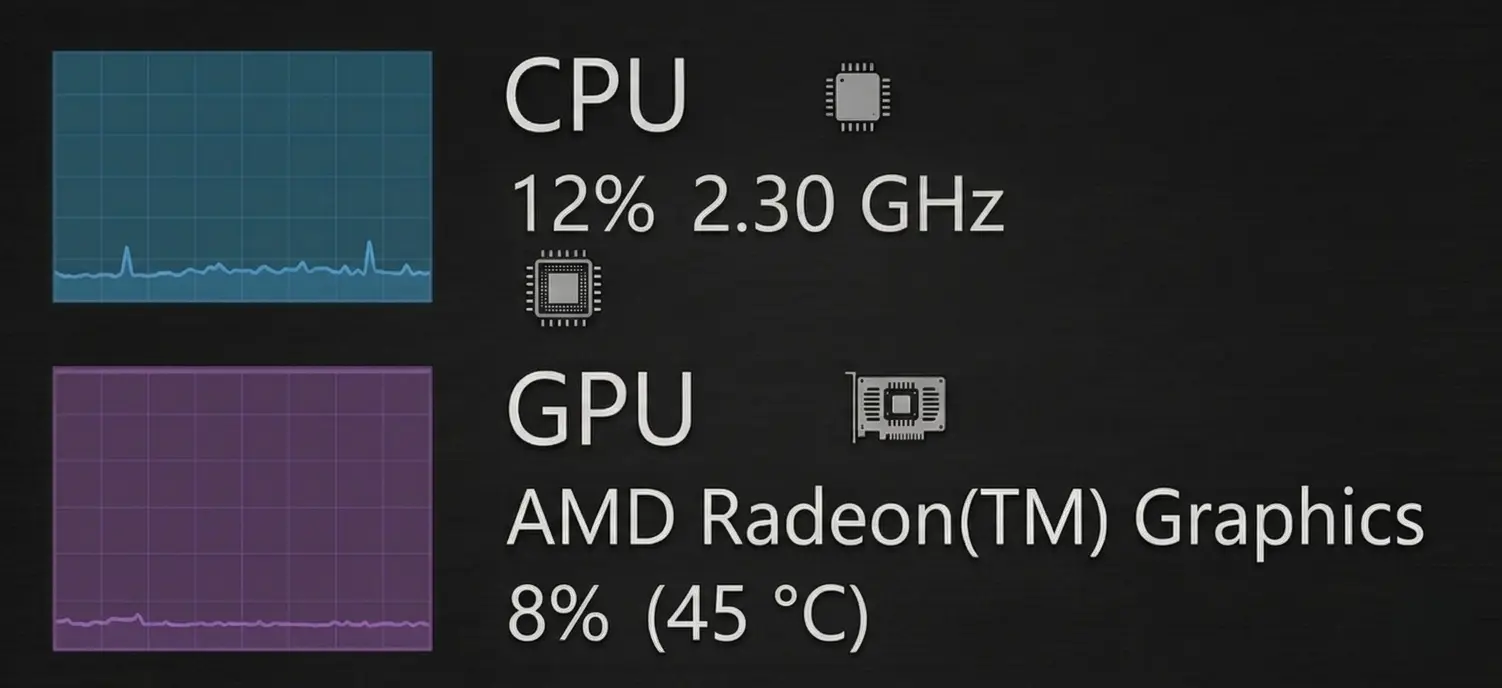

Low CPU usage and Low GPU usage:

When both the CPU and GPU show low activity, the workload is very light. This usually happens in simple games, older titles, or when graphics settings are very low.

Low CPU usage and Maximum GPU usage:

This normally occurs in visually demanding games or when playing at higher resolutions. If frame rates are not high enough, the graphics card is likely the component limiting performance.

High CPU usage and Maximum GPU usage:

This usually means the game or application is demanding on both processing and graphics power. The system is fairly balanced, although the GPU may be slightly closer to its performance limits.

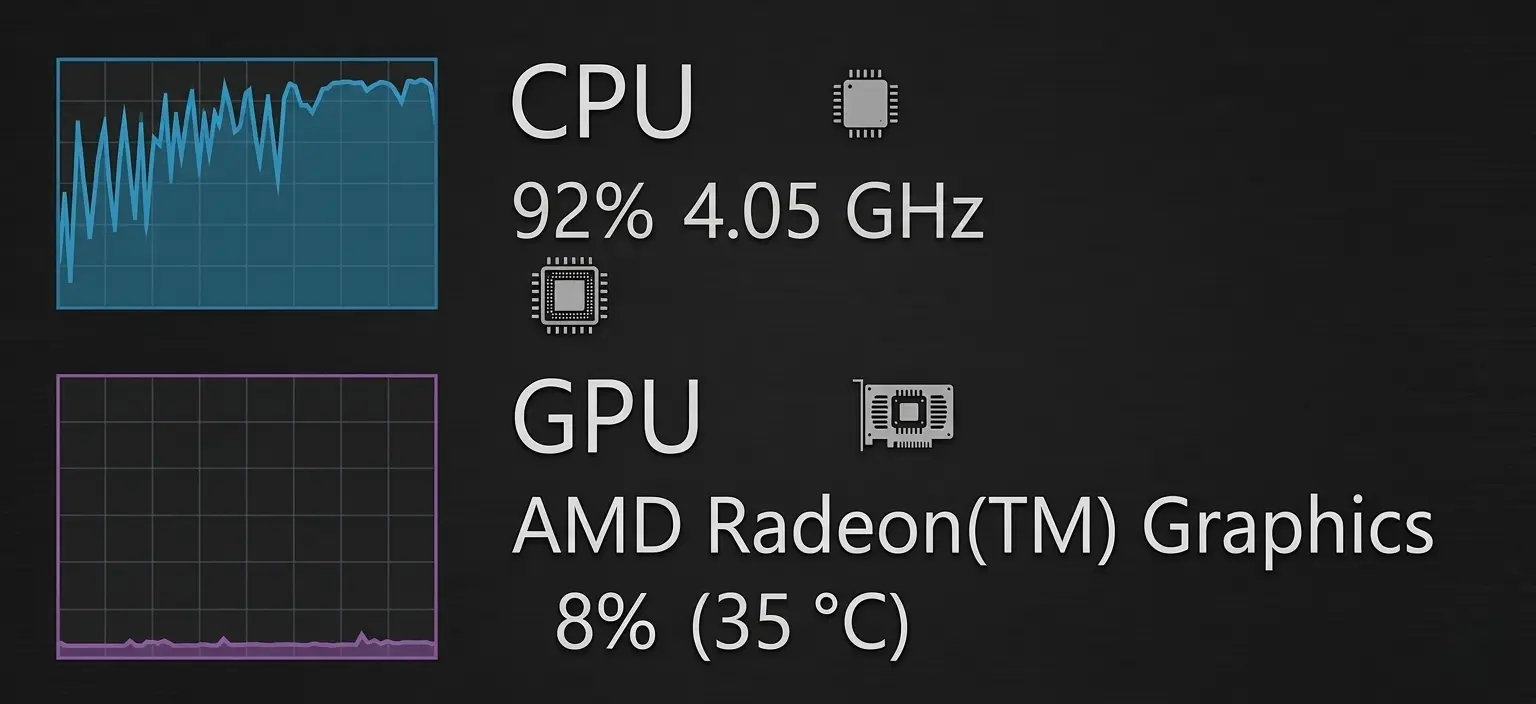

Maximum CPU usage and Low GPU usage:

Here the processor is fully loaded while the graphics card remains underused. This is a classic sign of a CPU bottleneck. The processor cannot send tasks to the GPU quickly enough, which limits overall performance. Upgrading the CPU or reducing CPU-heavy settings may help improve results.

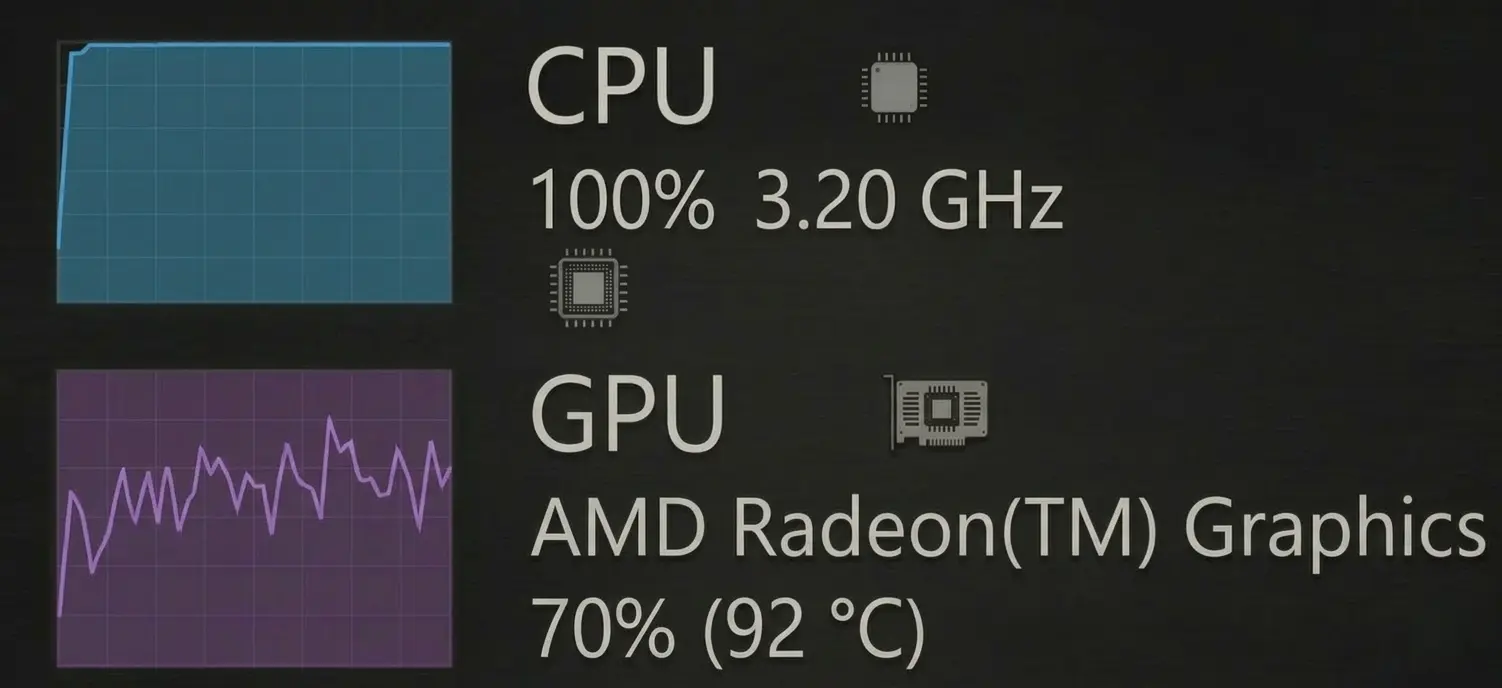

Maximum CPU usage and High GPU usage:

Both the processor and graphics card are working hard in this scenario, but the CPU is reaching its maximum limit. The system is close to balanced, although the processor may slightly restrict performance in certain situations or games.

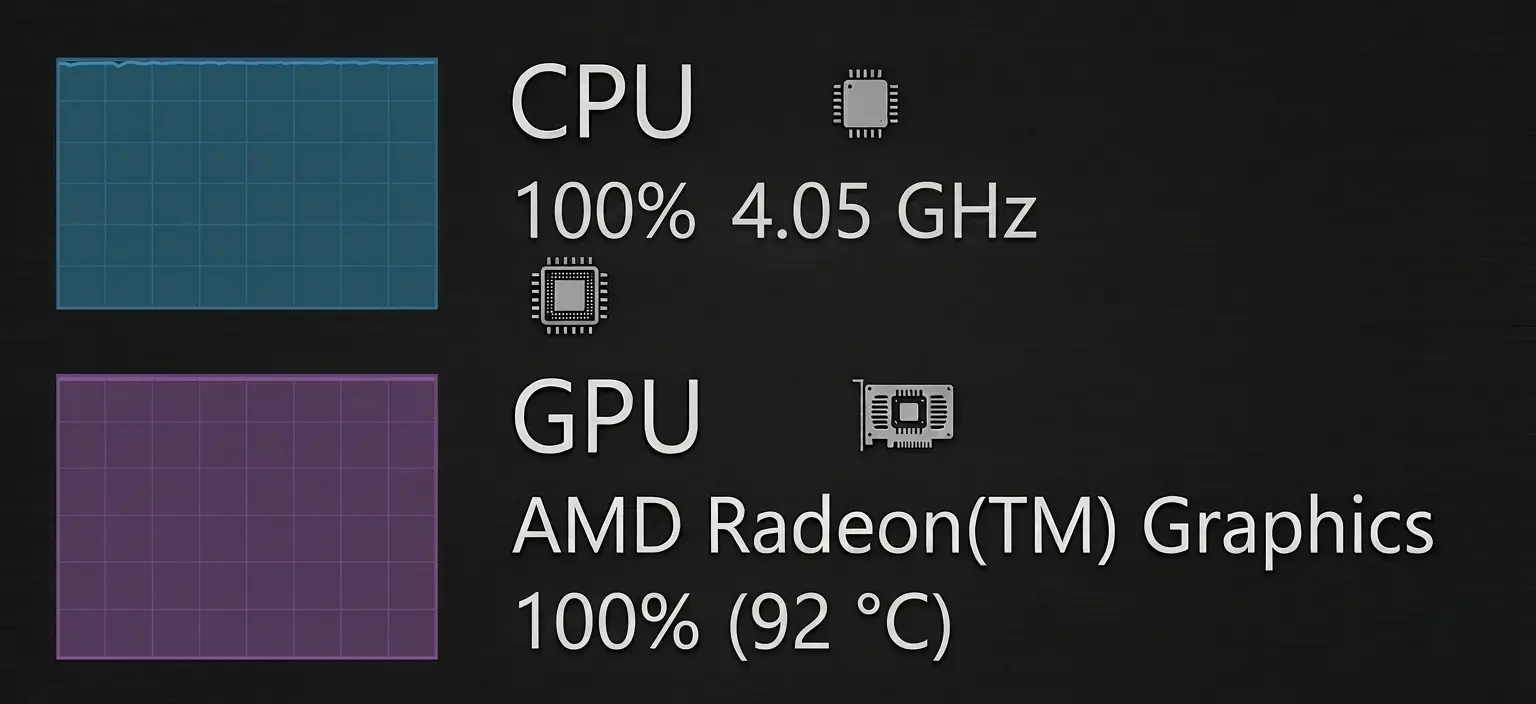

Maximum CPU usage and Maximum GPU usage:

When both the CPU and GPU reach full utilization, your system is being pushed to its limits. This is common in extremely demanding games or heavy workloads.

Impact of Bottlenecks on Different Use Cases

Gaming Performance

Bottlenecks affect frame rates, stuttering, and GPU/CPU utilization. High-end GPUs paired with weak CPUs may underperform in AAA games, while balanced builds maximize real-world FPS and smooth gameplay. Using a gaming bottleneck calculator can help identify and fix these mismatches.

Content Creation and Productivity

CPU-heavy tasks in Adobe Premiere, Blender, or other content creation apps can be limited by GPU or RAM bottlenecks. Proper component selection, dual-channel memory, and monitoring component profiles ensures faster rendering and fewer delays.

Streaming and Multi-Tasking

Streaming while gaming or running multiple apps stresses both CPU and GPU. Bottlenecks can cause dropped frames or inconsistent performance. Monitoring frame pacing and using hardware bottleneck analysis tools helps maintain smooth streaming and multitasking performance.

General PC Use

Even for non-gaming tasks, mismatched hardware can lead to slower response times, longer load times, and system instability. Properly balancing CPU, GPU, RAM, and storage ensures a smooth experience across browsing, office work, and media consumption.

Tips and Recommendations

Use benchmarking and bottleneck analysis tools to evaluate your system for each use case. Upgrade recommendations based on real-world data and industry benchmarks help optimize performance for gaming, content creation, streaming, or general use.

Recognizing Bottleneck Symptoms

Understanding the signs of a bottleneck helps you identify which component is limiting your system’s performance. Recognizing these symptoms early allows you to take corrective action before hardware issues or performance problems escalate.

High CPU or GPU Usage

When CPU usage is consistently near 100% while GPU usage remains low, your processor may be bottlenecking performance. Conversely, a GPU running at maximum capacity while the CPU is underutilized indicates a GPU bottleneck. Monitoring usage graphs and hardware utilization helps identify these imbalances.

Stuttering, Low Frame Rates, or Input Lag

Sudden stutters, inconsistent frame pacing, or delayed input responses often signal bottlenecks. Games and applications may appear jerky or unresponsive if one component cannot process data fast enough, even if other components are idle.

RAM and Disk Usage Issues

Insufficient RAM or slow storage can cause memory and disk bottlenecks. High RAM usage or frequent disk activity can lead to frame drops, slow loading, or system instability, which may be mistakenly attributed to CPU or GPU performance.

Thermal Throttling and System Instability

Overheating can reduce CPU or GPU clock speeds, causing thermal throttling. Watch for fluctuating performance, sudden drops in frame rates, or abnormal system health scores.

Monitoring Tools and Performance Graphs

Use hardware monitoring tools to track CPU, GPU, and RAM usage, disk activity, and frame pacing. Performance graphs provide insights into bottleneck percentage scores and system utilization, helping you diagnose issues and plan upgrades effectively.

Conclusion

Significant differences between CPU and GPU usage often indicate where a system may be limited, although they can also reflect the type of software or game being used. By observing how these components are utilized during workloads, you can better understand your system’s performance and make smarter decisions about upgrades, settings, or optimization.
